Graphics 3D Library (G3D) API Function List

Regarding incompatibility with versions released before 2004/09/16

G3D Overview

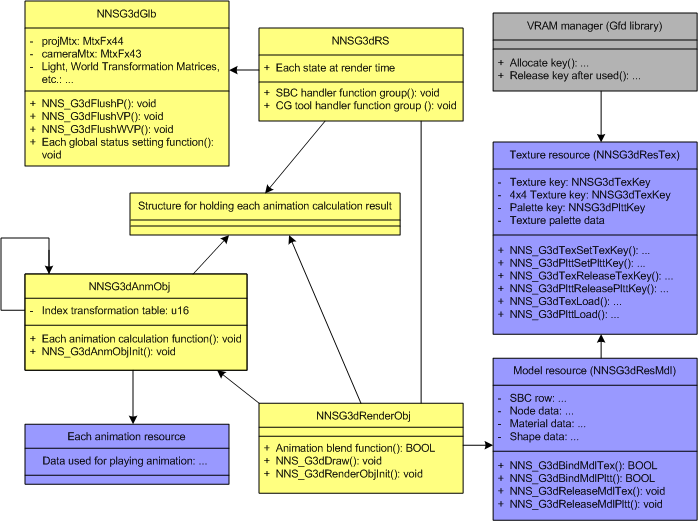

The following diagram is the schematic of major structures and functions. Note that G3D is implemented in the C language and is not implemented as class or member functions.

Global State (NNSG3dGlb)

NNS_G3dGlbInit Initializes the global state kept in the G3D library.
NNS_G3dGlbFlushP Sends the global state kept in the G3D library to the geometry engine.
NNS_G3dGlbFlushVP Sends the global state kept in the G3D library to the geometry engine.
NNS_G3dGlbFlushWVP Sends the global state kept in the G3D library to the geometry engine.
NNS_G3dGlbSetBaseScale Configures the value in the base scale of the global state.
NNS_G3dGlbSetBaseRot Configures the value in the base rotation of the global state.
NNS_G3dGlbSetBaseTrans Configures the value in the base translation of the global state.
NNS_G3dGlbLightVector Configures the directional vector of the light in the global state.
NNS_G3dGlbLightColor Configures the light color in the global state.
NNS_G3dGlbMaterialColorDiffAmb Configures the diffuse color and the ambient color of the material in the global state.
NNS_G3dGlbMaterialColorSpecEmi Configures the specular color and the emission color of the material in the global state.
NNS_G3dGlbPolygonAttr Configures the attribute value related to the polygon in the global state.
NNS_G3dGlbSetViewPort Configures the viewport in the global state.
NNS_G3dGlbLookAt Sets the camera matrix in the global state.
NNS_G3dGlbPerspective Sets the transparency projection matrix in the global state.
NNS_G3dGlbFrustum Sets the transparency projection matrix in the global state.
NNS_G3dGlbOrtho Sets the orthographic projection matrix in the global state.
NNS_G3dGlbPerspectiveW Sets the transparency projection matrix in the global state. (With scaleW parameters.)
NNS_G3dGlbFrustumW Sets the transparency projection matrix in the global state. (With scaleW parameters.)
NNS_G3dGlbOrthoW Sets the orthographic projection matrix in the global state. (With scaleW parameters.)
NNS_G3dGlbSetProjectionMtx Sets the projective transformation matrix to the global state.
NNS_G3dGlbGetCameraMtx Returns a pointer to the camera matrix that is set to the global state.
NNS_G3dGlbGetProjectionMtx Returns a pointer to the projection matrix that is set to the global state.
NNS_G3dGlbGetBaseRot Returns a pointer to the object rotation matrix that is set to the global state.
NNS_G3dGlbGetBaseTrans Returns a pointer to the object translation vector that is set to the global state.
NNS_G3dGlbGetBaseScale Returns a pointer of the object scale vector that is set to the global state.
NNS_G3dGlbGetCameraPos Returns a pointer to the camera position vector that is set to the global state.
NNS_G3dGlbGetCameraUp Returns a pointer to the upward vector for the camera.
NNS_G3dGlbGetCameraTarget Returns a pointer to the camera's focal point vector that is set to the global state.
NNS_G3dGlbGetInvV Returns a pointer to the inverse matrix of the camera matrix that is set to the global state.
NNS_G3dGlbGetInvW Returns a pointer to the inverse matrix of the BaseSRT matrix that is set to the global state.
NNS_G3dGlbGetInvP Returns the pointer to the inverse matrix of the projection matrix that is set to the global state.
NNS_G3dGlbGetWV Returns the pointer to the matrix that is the BaseSRT matrix set to the global state multiplied by the camera matrix.
NNS_G3dGlbGetInvWV Returns the pointer to the inverse matrix of the matrix that is the BaseSRT matrix set to the global state multiplied by the camera matrix.
NNS_G3dGlbGetInvVP Returns pointer to the inverse matrix of the matrix that is the camera matrix set to the global state multiplied by the projection matrix.
NNS_G3dGlbGetViewPort Gets the view port that is set to the global state.

Kernel (NNSG3dRenderObj, NNSG3dAnmObj, NNSG3dRedMdl, NNSG3dResTex, and so on)

NNS_G3dAnmObjInit Initializes the animation object.
NNS_G3dAnmObjSetFrame Configures the animation play frame of the animation object.
NNS_G3dAnmObjSetBlendRatio Configures the animation blend ratio of the animation object.
NNS_G3dAnmObjGetNumFrame Obtains the frame count of the animation that the animation object references.
NNS_G3dAnmObjCalcSizeRequired Returns the memory size needed by the animation object that corresponds to the designated model resource.
NNS_G3dAnmObjEnableID Enables the animation of the specified node ID/material ID.
NNS_G3dAnmObjDisableID Disables the animation of the specified node ID/material ID.
NNS_G3dRenderObjInit Initializes the rendering object.
NNS_G3dRenderObjGetResMdl Gets the pointer to the model resource from the rendering object.
NNS_G3dRenderObjAddAnmObj Appends the animation object (AnmObj) to the rendering object (RenderObj).
NNS_G3dRenderObjRemoveAnmObj Removes the animation object (AnmObj) from the rendering object (RenderObj).
NNS_G3dRenderObjSetUserSbc Registers the SBC (Structure Byte Code) specified by the user to the rendering object (RenderObj).
NNS_G3dRenderObjSetJntAnmBuffer Registers the buffer for the joint animation in the rendering object (RenderObj).
NNS_G3dRenderObjSetMatAnmBuffer Registers the buffer for the material animation in the rendering object (RenderObj).
NNS_G3dRenderObjReleaseJntAnmBuffer Deallocates the buffer for the joint animation registered in rendering object (RenderObj).
NNS_G3dRenderObjReleaseMatAnmBuffer Deallocates the buffer for the material animation registered in the rendering object (RenderObj).
NNS_G3dRenderObjSetCallBack Registers the callback function that is called during the render process.
NNS_G3dRenderObjResetCallBack Resets the callback function that is called during the render process.
NNS_G3dRenderObjSetInitFunc Registers the callback function that is called before the render process.
NNS_G3dRenderObjSetUserPtr Configures the pointer to the region that can be used on the callback process performed during the render process.
NNS_G3dRenderObjSetFlag Sets what was designated by the execution control flag of the rendering object.
NNS_G3dRenderObjResetFlag Resets what was designated by the execution control flag of the rendering object.
NNS_G3dRenderObjTestFlag Tests if the execution control flags of the rendering object have been set.
NNS_G3dRenderObjSetBlendFuncJnt Sets the joint blend function of the rendering object.
NNS_G3dRenderObjSetBlendFuncMat Sets the material blend function of the rendering object.
NNS_G3dRenderObjSetBlendFuncVis Sets the visibility blend function of the rendering object.
NNS_G3dTexGetRequiredSize Returns the size needed when storing the normal texture in VRAM.
NNS_G3dTex4x4GetRequiredSize Returns the size needed when storing the 4 x 4 texel compression texture in VRAM.
NNS_G3dTexSetTexKey Configures the texture key that indicates the memory used for storing the texture in the texture resource.
NNS_G3dTexLoad Loads the texture to the VRAM region that the configured texture key indicates.
NNS_G3dTexReleaseTexKey Releases the referenced texture.
NNS_G3dPlttGetRequiredSize Returns the size needed when storing the palette to the VRAM.
NNS_G3dPlttSetPlttKey Configures the palette key that indicates the memory needed to store the palette in the texture resource.
NNS_G3dPlttLoad Loads the palette to the VRAM region that the configured palette key indicates.
NNS_G3dPlttReleasePlttKey Releases the referenced palette.
NNS_G3dBindMdlTex Binds the texture to the model.
NNS_G3dBindMdlTexEx Binds the texture designated by the name to the model.
NNS_G3dForceBindMdlTex Forcibly binds the texture designated by the index to the model.
NNS_G3dReleaseMdlTex Releases the binding on the texture entry of the material bound to the texture.
NNS_G3dReleaseMdlTexEx Releases the binding on the texture entry of the material bound to the texture that has the designated name.
NNS_G3dBindMdlPltt Binds the palette to the model.
NNS_G3dBindMdlPlttEx Binds the palette designated by the name to the model.
NNS_G3dForceBindMdlPltt Forcibly binds the palette designated by the index to the model.
NNS_G3dReleaseMdlPltt Releases the binding on the palette entry of the material bound to the palette.
NNS_G3dReleaseMdlPlttEx Releases the binding on the palette entry of the material bound to the palette.
NNS_G3dBindMdlSet Binds a texture and palette to each model in the model set.
NNS_G3dReleaseMdlSet Releases the binding to the texture and palette from each model in the model set.

Rendering Engine (NNSG3dRS, NNSG3dRenderObj)

NNS_G3dDraw Renders the model.
NNS_G3dDraw1Mat1Shp Renders a simple model quickly.
Global Variables The global variables used at the time of rendering.
SBC and Callbacks A description of the SBC (Structure Byte Code) and callbacks.
NNSG3dRS Structure and Accessors A description of the structure and accessor functions that manage the state at the time of rendering.

Geometry Engine

NNS_G3dGeIsSendDLBusy Returns whether geometry command DMA transfer by the NNS_G3dGeSendDL function is currently in progress.
NNS_G3dGeIsBufferExist Returns whether or not the command buffer exists.
NNS_G3dGeIsImmOK Returns whether or not it is OK to send the command directly to the geometry FIFO.
NNS_G3dGeIsBufferOK Returns whether or not data can be appended to the command buffer.
NNS_G3dGeWaitSendDL Waits until the transmission of the NNS_G3dGeSendDL() function finishes.
NNS_G3dGeSetBuffer Sets the command buffer.
NNS_G3dGeReleaseBuffer Safely releases the command buffer.
NNS_G3dGeFlushBuffer Safely writes the contents of the command buffer to the geometry engine.
NNS_G3dGeSendDL Safely writes the designated display list to the geometry engine.
NNS_G3dGeBufferOP_N Safely writes the geometry command that has N arguments to the geometry engine.
Geometry Command Functions The function group that issues the geometry commands via NNS_G3dGeBufferOP_N().

Models (NNSG3dResMdl)

NNS_G3dMdlUseGlbXXXXX Sets so that the material setting set in the global state can be used for model rendering.
NNS_G3dMdlUseMdlXXXXX Sets so that the material setting in the model resource can be used for model rendering.
NNS_G3dMdlSetMdlXXXXX Sets the individual materials in the model resource.
NNS_G3dMdlGetMdlXXXXX Gets the individual material settings in the model resource.
NNS_G3dMdlSetMdlXXXXXAll Batch sets the materials in the model resource.

Animation

NNS_G3dGetAnmByIdx Obtains a pointer to the animation resource from the animation resource file by specifying an index.
NNS_G3dGetAnmByName Obtains a pointer to the animation resource from the animation resource file by specifying a resource name.

Utilities

NNS_G3dInit Initializes the G3d library.
NNS_G3dResDefaultSetup Sets up the G3D resource.
NNS_G3dResDefaultRelease Performs the necessary management processing before releasing the G3Dresource.
NNS_G3dGetResultMtx Takes out the matrix from the matrix stack if the designated matrix remains in the matrix stack.
NNS_G3dSetResultMtx Substitutes the designated matrix to the applicable position of the matrix stack.
NNS_G3dGetSbcCmdLen Returns the length of the designated SBC command string.
NNS_G3dSearchSbcCmd Searches for the designated SBC command from inside the SBC code string.
NNS_G3dGetParentNodeID Gets the ID of the parent node of the designated node.
NNS_G3dGetChildNodeIDList Creates the list that stored the ID of the child node of the designated node.
NNS_G3dGetCurrentMtx Obtains the current location coordinate matrix and current directional vector matrix.
NNS_G3dLocalOriginToScrPos Returns the location on the screen of the origin of the local coordinate system.
NNS_G3dWorldPosToScrPos Returns the location on the screen of coordinates in the world coordinate system.
NNS_G3dScrPosToWorldLine Returns in the world coordinate system the points on the Near clip plane and Far clip plane corresponding to the position on the screen.
Resource Name Macro This is the macro group for handling the resource names.

Binary Resources

NNS_G3dGetResDataByName Gets the pointer to the entry that corresponds to the resource name from the dictionary.
NNS_G3dGetResDictIdxByName Gets the index that corresponds to the resource name from the dictionary.
NNS_G3dGetDataBlockHeaderByIdx Gets the block header from the resource file.
NNS_G3dGetMdlSet Gets the model set from the resource file.
NNS_G3dGetTex Gets the texture resource from the resource file.
NNS_G3dGetMdlByIdx Gets the model from the model set, using an index.
NNS_G3dGetMdlByName Gets the model from the model set, by its resource name.
NNS_G3dGetMat Gets the material from the model.
NNS_G3dGetShp Gets the shape from the model.
NNS_G3dGetSbc Gets the pointer to the SBC code string from the model.

Memory Allocation

NNS_G3dAllocRenderObj Allocates the region for the rendering object from the heap region.
NNS_G3dFreeRenderObj Deallocates the region allocated by the NNS_G3dAllocRenderObj function.
NNS_G3dAllocAnmObj Allocates the region for the animation object from the heap region.
NNS_G3dFreeAnmObj Deallocates the region allocated by the NNS_G3dAllocAnmObj function.
NNS_G3dAllocRecBufferJnt Allocates the region for the joint record buffer from the heap region.
NNS_G3dFreeRecBufferJnt Deallocates the region allocated by the NNS_G3dAllocRecBufferJnt function.
NNS_G3dAllocRecBufferMat Allocates the region for the material record buffer from the heap region.
NNS_G3dFreeRecBufferMat Deallocates the region allocated with the NNS_G3dAllocRecBufferMat function.

Explanation of Main G3D Structure

NNSG3dGlb Structure for managing the color and direction of the camera matrix and light.
NNSG3dRenderObj Structure for managing one model and multiple animations.
NNSG3dAnmObj Structure necessary for holding data when getting the needed animation data from the animation resource.
NNSG3dRS Structure holding the state during rendering. Refer to NNSG3dRS Structure and Accessor.
NNSG3dJntAnmResult Structure for storing joint (animation) calculation results.
NNSG3dMatAnmResult Structure for storing material (animation) calculation results.
NNSG3dVisAnmResult Structure for storing visibility (animation) calculation results.
NNSG3dResMdl Model resource structure in the .nsbmd file.
NNSG3dResTex Texture resource structure in the .nsbmd file or the .nsbtx file.

Explanation of G3D Function Pointer Types and Function Pointer Tables

NNSG3dSbcCallBackFunc Type of callback function used when rendering.
NNSG3dFuncAnmJnt Type of function that calculates joint animation.
NNSG3dFuncAnmMat Type of function that calculates material animation.
NNSG3dFuncAnmVis Type of function that calculates visibility animation.
NNSG3dFuncAnmBlendJnt Type of function that that blends joint animation calculation results.
NNSG3dFuncAnmBlendMat Type of function that blends material animation calculation results.
NNSG3dFuncAnmBlendVis Type of function that blends visibility animation calculation results.
NNS_G3dFuncSbcTable Table of functions that process SBCs.
NNS_G3dFuncSbcMatTable Function table for processing the SBC NNS_G3D_SBC_MAT command for every material data format.
NNS_G3dFuncSbcShpTable Function table for processing the SBC NNS_G3D_SBC_SHP command for every shape data format.
NNS_G3dAnmObjInitFuncArray Function table where the initialization function of the NNSG3dAnmObj structure corresponding to each animation format is stored.

Descriptions of Macros Configurable in config.h

NNS_G3D_SIZE_JNT_MAX This sets the maximum number of nodes for a single model. Must be a multiple of 32 and no greater than 256. The default value is 64.
NNS_G3D_SIZE_MAT_MAX This sets the maximum number of materials for a single model. Must be a multiple of 32 and no greater than 256. The default value is 64.
NNS_G3D_SIZE_SHP_MAX This sets the maximum number of shapes for a single model. Must be a multiple of 32 and no greater than 256. The default value is 256.
NNS_G3D_SIZE_COMBUFFER This is the command buffer size specified with NNS_G3dGeSetBuffer. The default value is 192 (words).
NNS_G3D_SBC_CALLBACK_TIMING_A_DISABLE Defining this disables the timing A callback. By default, it is not defined.
NNS_G3D_SBC_CALLBACK_TIMING_B_DISABLE Defining this disables the timing B callback. By default, it is not defined.
NNS_G3D_SBC_CALLBACK_TIMING_C_DISABLE Defining this disables the timing C callback. By default, it is not defined.
NNS_G3D_MAYA_DISABLE Defining this disables the code which supports models created in Maya. By default, it is not defined.
NNS_G3D_SI3D_DISABLE Defining this disables the code which supports models created in SI3D. By default, it is not defined.
NNS_G3D_3DSMAX_DISABLE Defining this disables the code which supports models created in 3dsMax. By default, it is not defined.
NNS_G3D_XSI_DISABLE Defining this disables the code which supports models created in Softimage|XSI. By default, it is not defined.
NNS_G3D_NSBMA_DISABLE Defining this disables material color animations. By default, it is not defined.
NNS_G3D_NSBTP_DISABLE Defining this disables texture pattern animations. By default, it is not defined.
NNS_G3D_NSBTA_DISABLE Defining this disables texture SRT animations. By default, it is not defined.
NNS_G3D_NSBCA_DISABLE Defining this disables character animations. By default, it is not defined.
NNS_G3D_NSBVA_DISABLE Defining this disables visibility animations. By default, it is not defined.
NNS_G3D_USE_EVPCACHE Setting a non-zero value for this will improve processing speed by providing a cache to use during skinning calculations. By default, this is defined as 1.

CONFIDENTIAL
