In the Text Character and Character String Drawing libraries, the term "character" always refers to an 8x8 pixel image that is a compositional element of OBJs and BGs. "Character" is not used to refer to the symbols of written language, which are called "text characters."
The Text Character Drawing library draws text characters in pixel units on screen display elements composed of character BGs or character OBJs.
The Text Character Drawing library associates the draw-target characters with a virtual drawing screen called the CharCanvas and then draws text characters on that virtual screen. The CharCanvas drawing screen entity is a solid mass of tiled characters. When a text character is drawn on the virtual drawing screen, the Text Character Drawing library draws on the characters that make up the entity of the screen.
With the Nintendo DS, even if drawing is done on characters, that is not enough for display on the physical screen.
For BG characters, screen configuration is necessary, and for OBJ characters, OAM configuration is necessary. However, the Text Character Drawing library has functions that simplify the configuration of these settings.
In addition, for OBJ characters another possibility is to construct a cell from the CharCanvas and draw with the renderer.
The functions of the Text Character Drawing library can be divided into five groups.
|
Building CharCanvas Functions for initializing and building the CharCanvas. |
NNS_G2dCharCanvasInitForBGNNS_G2dCharCanvasInitForOBJ1DNNS_G2dCharCanvasInitForOBJ2DRect |
|
Building Cells Functions for building cells that display CharCanvas. |
NNS_G2dCharCanvasCalcCellDataSize1DNNS_G2dCharCanvasCalcCellDataSize2DRectNNS_G2dCharCanvasMakeCell1DNNS_G2dCharCanvasMakeCell2DRect
|
|
Filling CharCanvas Functions for filling the CharCanvas with a solid color. |
NNS_G2dCharCanvasClearNNS_G2dCharCanvasClearArea |
|
Text character drawing Functions for drawing text characters to the CharCanvas. |
NNS_G2dCharCanvasDrawCharNNS_G2dCharCanvasDrawGlyph
|
|
Configuring the screen and OAM settings Functions for setting the screen and OAM so that the CharCanvas can be displayed. |
NNS_G2dMapScrToCharTextNNS_G2dMapScrToCharAffineNNS_G2dMapScrToChar256x16PlttNNS_G2dCalcRequireOBJ1DNNS_G2dCalcRequireOBJ2DRectNNS_G2dArrangeOBJ1DNNS_G2dArrangeOBJ2DRect
|
Based on these classifications, the flow for drawing a text character is as follows.
(1) Build the CharCanvas using the CharCanvas build functions.
Configure the screen and OAM settings using the configuration functions.
As an alternative, construct a cell using the cell-building functions.
↓
(2) Clear the CharCanvas using the fill functions.
↓
(3) Draw a text character using the drawing functions.
↓
From this point, use steps (2) and (3) only when required.
(4) If a cell was built in (1), draw the cell using the renderer.
In many cases, it is better to use the Character String Drawing library instead of directly rendering the text character with the text-character drawing functions in step (3).

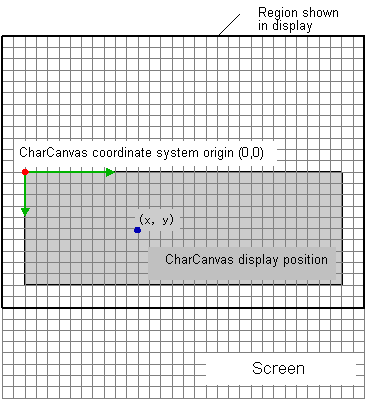

The text character drawing functions express the position of the text character using a pixel-unit coordinate system; the upper-left corner of the CharCanvas is the origin, and moving towards the lower-right corner is the positive direction. In this documentation, this coordinate system is called the CharCanvas coordinate system.
2005/07/12 Added cell-building functions.
2005/05/25 Initial version.
