NNS_G2dCharCanvasInitForBG

Syntax


#include <nnsys/g2d/g2d_CharCanvas.h>

void NNS_G2dCharCanvasInitForBG(
	NNSG2dCharCanvas* pCC,
	void* charBase,
	int areaWidth,
	int areaHeight,
	NNSG2dCharaColorMode colorMode
);

Arguments

`pCC`	[OUT] Pointer to CharCanvas.
`charBase`	[IN] Pointer to starting point of characters assigned to CharCanvas. Must have 4-byte alignment.
`areaWidth`	[IN] Number of characters in the horizontal direction of CharCanvas.
`areaHeight`	[IN] Number of characters in the vertical direction of CharCanvas.
`colorMode`	[IN] Color mode of target BG.

Return Values

None.

Description

Initializes the NNSG2dCharCanvas structure to build the CharCanvas on the Character BG screen.

With this function, the CharCanvas gets built with n number of characters, assigned starting from charBase, where n = areaWidth * areaHeight. Note that the maximum number of characters that can be assigned to the CharCanvas is 256 for an Affine BG, and 1024 for Text BG and Affine Extended BG.

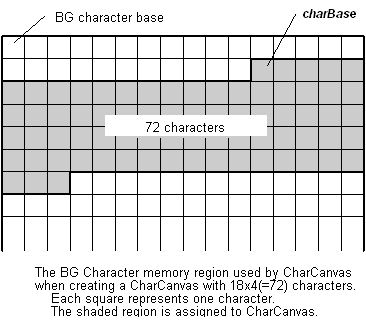

Conceptual Diagram

The colorMode argument takes either of these values:

`NNS_G2D_CHARA_COLORMODE_16`	Use 16-color characters
`NNS_G2D_CHARA_COLORMODE_256`	Use 256-color characters

Sample code

    const int width = 24;
    const int height = 8;
    const int offset = 0x40;

    NNSG2dCharCanvas cc;
    GXCharFmt16* pCharBase = (GXCharFmt16*)G2_GetBG0CharPtr();


    // Build CharCanvas using main BG0 characters.
    NNS_G2dCharCanvasInitForBG(
        &cc,                            //
        pCharBase + offset              // Build CharCanvas using (width * height) number of characters.
        width,                          // The reference point is the character
        height,                         // that is "offset" away from the character base.
        NNS_G2D_CHARA_COLORMODE_16      //

    );

Revision History

2007/01/11 Changed the type of the fifth argument from NNSG2dColorMode to NNSG2dCharaColorMode.
2005/09/29 Corrected IN/OUT indications for arguments.
2005/05/25 Initial version.
